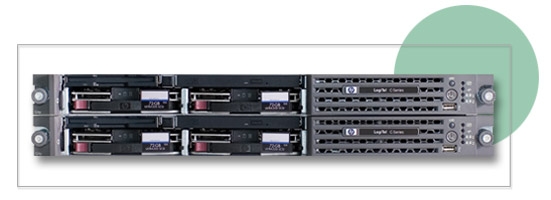

IVID™ C-Series

The Ivid™ C-Series is a line of full featured, carrier grade soft-switches and termination gateways engineered for flexibility and reliability.

The C-Series is specifically designed to meet the expressed needs of today’s service providers.

Efficient use of capital is important to every business.
The C-Series delivers all the features and functionality required by service providers in a unique configuration that initially supports 1,000 simultaneous calls and scales in flexible increments as your business grows.
  • Low cost of ownership
  • Modular design allows for success based CapEx
  • Rapid return on investment

A robust feature set is essential.
The C-Series is feature rich and supports a multitude of business and residential service applications.

Standard C-Series features supported include:
  • Caller ID • Caller ID Blocking
  • Call Waiting • Call Forwarding
  • Call Return (*69) • Three-way Calling
  • Call Transfer • Do Not Disturb
  • Distinctive Ring
Enhanced C-Series features include:
  • Voice Mail
  • Remote access to voicemail
  • Find me/ Follow me
  • Voice mail to email message delivery
Optional business Centrex features include:
  • Multi-company and multi-location support
  • Auto attendant • Conference bridging
  • Music on hold • Music on transfer
  • Do not disturb • Direct Inward Dial

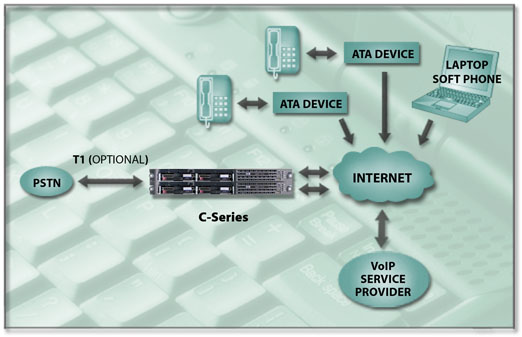

TYPICAL MULTIPLE OFFICE CONFIGURATION

Companies aren’t looking for vendors; they’re looking for partners.
At LogiTel we make it our business to help your business succeed. We recognize that every application is unique. We supply our application engineering talents and support services along with our equipment to help our customers successfully meet the demands of their customers.

We’re making it easy for our customers to take advantage of what the latest technology
has to offer.
We’re simplifying the VoIP rEvolution.

SPECIFICATIONS

CALL MANAGEMENT FEATURES:
  • Voice mail system with email forwarding
  • Music on hold
  • Conference bridging
  • Auto attendant functionality
  • Multi company support
  • Trunk group support
  • Public and private dial plan support
  • Automated load balancing
  • Forced routing
  • Pass-through support for calls to 800, 911,      411, etc
  • Automatic appending and stripping of digits      to dialed numbers
  • Call detail records with specialized reports
  • Type I and II caller ID delivery
  • Real time monitoring
  • Web browser control
  • Real least-cost routing with multiple routes
  • Proper answer disconnect
  • Backup emergency PSTN line support

TELEPHONY SPECIFICATIONS:
  • Voice codecs: G.711, G.729ab, GSM 06.10
  • Enhanced echo cancellation: ITU Rec. G.      168, up to 128 msec tailsize
  • PRI signaling protocols: NI-1, NI-2, Euro      ISDN, 4ESS, 5ESS, DMS100
  • T1/E1 signaling
  • Dialing: DTMF and MF
  • Impedance: 120 ohms balanced; T1-100      ohms balanced

PHYSICAL PARAMETERS:
  • Dimensions: 19”W x 3.5”H x 27.5”D (2U)
  • Weight: 33.56 kg (74 lbs)

POWER REQUIREMENTS:
  • Input Power: 100-240 VAC, 50/60Hz
  • Power Consumption: 920 Watts Maximum
  • Heat Dissipation: 4,000 BTU

ENVIRONMENT:
  • Operating temperature: 10-35°C
    (50-95°F)
  • Storage temperature: -40-70°C
    (-40-158°F)
  • Operating humidity: 10-90%
     non-condensing

CONFIGURATION / MANAGEMENT:
  • Central provisioning and management
  • Web-based graphical user interface (GUI);
    - integrated, no software to install
  • Alarm/fault detection and reporting
  • No need for complex arcane command line      interface

SECURITY:
  • Encrypted TCP/IP connection for remote
     administration and upgrades
  • Embedded firewall

PSTN/TELEPHONY INTEROPERABILITY:
  • Interface:
     - T1: 1.544 Mbit/s
     - E1: 2.048 Mbit/s
  • CAS Signaling:
     - FXS / FXO loop- / ground start
     - DID – lines
     - E&M immediate / wink
     - Feature Group D
  • CCS Protocols:
     - 4ESS
     - Lucent 5E
     - DMS100
     - NI-1 (National ISDN-1)
     - NI-2 (National ISDN-2)
     - EuroISDN PCM-30

RELIABILITY:
  • Fully redundant pair/cluster architecture
  • Automatic fail-over with content replication
  • Redundant dual power supplies
  • Hot swappable SCSI RAID hard drives
  • Dual Intel® Xeon™ processor platform
  • ECC RAM
  • Continuous internal monitoring
  • Fully remote management
